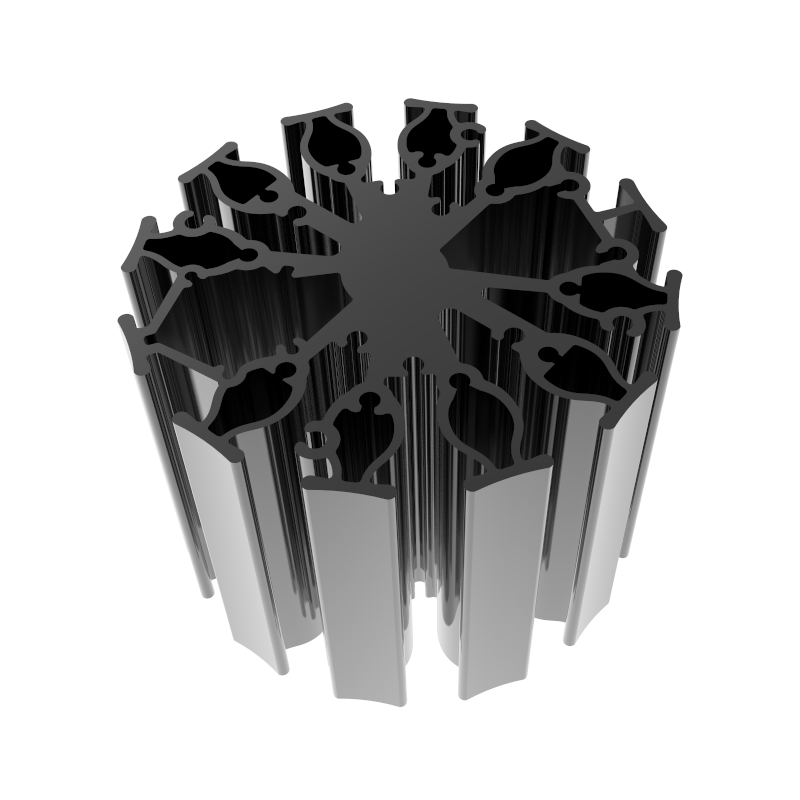

FanLED-7020/7050/7080 aluminum custom heatsink manufacturer

FanLED-7020/7050/7080 aluminum custom heatsink manufacturer

Description
LED Star Heat Sink ø70mmxh20mm/50mm/80mm; Design for Spotlight and Downlight 1300~3200lm; Rth1.9°C/w~3.8°C/w; Suitable for 8w/10/12w/15w/18w/20w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Black ano
Availability
FanLED-7050 501pcs; FanLED-7080 300pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name FanLED passive heat sinks
Seriest Number FanLED-70
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized or Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ70
Height(mm) 20.0  50.0  80.0
Item Number FanLED-7020 FanLED-7050 FanLED-7080
Max. Lumen 1800 lm 2700 lm 3200 lm
Dissipated Power  (Ths-amb,50°C) 13.0 W 19.6 W 23.0 W
Thermal Resistance Rth(°C/W) 3.8°C/W 2.3°C/W 1.9°C/W
Cooling Surface Area (mm²) 25980 mm² 64452 mm² 103923 mm²
Net Weight (g) 73.5 g 183.9 g 294.2 g
Quantity(pcs/CTN) 128 pcs 64 pcs 48 pcs
Modular Types COB COB COB
For Environments Indoor area
For Lightings Spot lights,Down lights,Architectural lights,Track lights
For Application Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    The product is suitable for Zhaga book 3 and Zhaga book 11 holes.
  • 02

    Suitable for COB modules with luminescent surface of 6.3-23.0mm.
  • 03

    Beautiful appearance design, and the line can go inside.
Mingfa Tech-Fanled-702070507080 Aluminum Custom Heatsink manufacturer-3
  • 04

    The customer can use self-tapping screws to install without tapping.
  • 05
    The product can be added with the general market shape square fan (L50xW50).
  • 06

    10%-15% thermal wattage higher than normal star heatsink.

PRODUCT COMPARISON

Mingfa Tech-Fanled-702070507080 Aluminum Custom Heatsink manufacturer-4
Mingfa Tech-Fanled-702070507080 Aluminum Custom Heatsink manufacturer-5

CERTIFICATE

FanLED-7020/7050/7080 aluminum custom heatsink manufacturer CERTIFICATE
