FanLED-9620/9650/9680 led light aluminum heat sink manufacturers

FanLED-9620/9650/9680 led light aluminum heat sink manufacturers

Description
LED Star Heat Sink ø96mmxh20mm/50mm/80mm; Design for Spotlight and Downlight 2400~5600lm; Rth1.2°C/w~2.4°C/w; Suitable for 10w/15w/20w/25w/30w/35w/40w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Bla
Availability
FanLED-9650 300pcs; FanLED-9680 300pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name FanLED passive heat sinks
Seriest Number FanLED-96
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized or Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ96
Height(mm) 20.0  50.0  80.0
Item Number FanLED-9620 FanLED-9650 FanLED-9680
Max. Lumen 2900 lm 4400 lm 5600 lm
Dissipated Power  (Ths-amb,50°C) 21.0 W 32.0 W 40.0 W
Thermal Resistance Rth(°C/W) 2.4°C/W 1.5°C/W 1.2°C/W
Cooling Surface Area (mm²) 40244 mm² 93676 mm² 147108 mm²
Net Weight (g) 124.8 g 312.0 g 499.2 g
Quantity(pcs/CTN) 72 pcs 36 pcs 24 pcs
Modular Types COB COB COB
For Environments Indoor area
For Lightings Spot lights,Down lights,Horticulture lights,Architectural lights,Track lights
For Application Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS

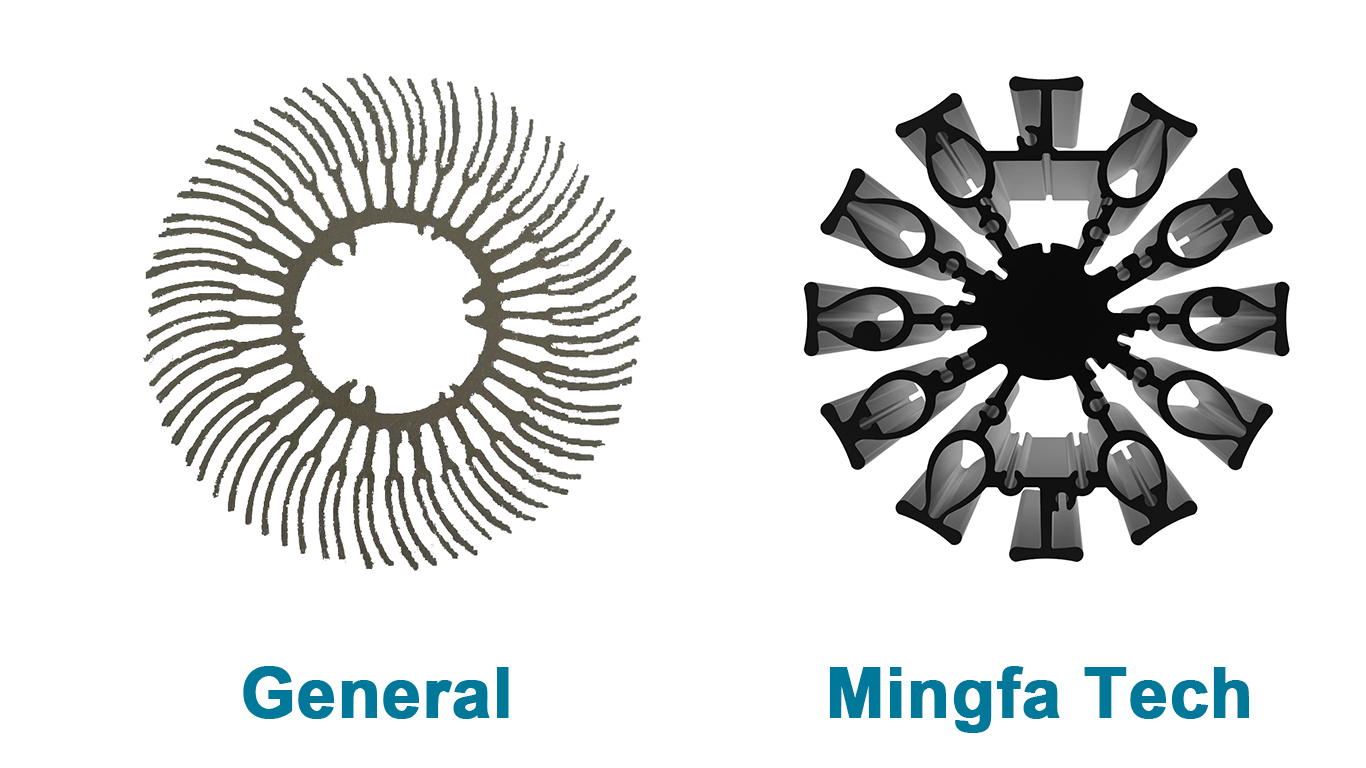

PRODUCT COMPARISON

Mingfa Tech-Heatsink And Fan | Fanled-962096509680 Led Light heat sink-4
Mingfa Tech-Heatsink And Fan | Fanled-962096509680 Led Light heat sink-5

CERTIFICATE

FanLED-9620/9650/9680 led light aluminum heat sink manufacturers CERTIFICATE
