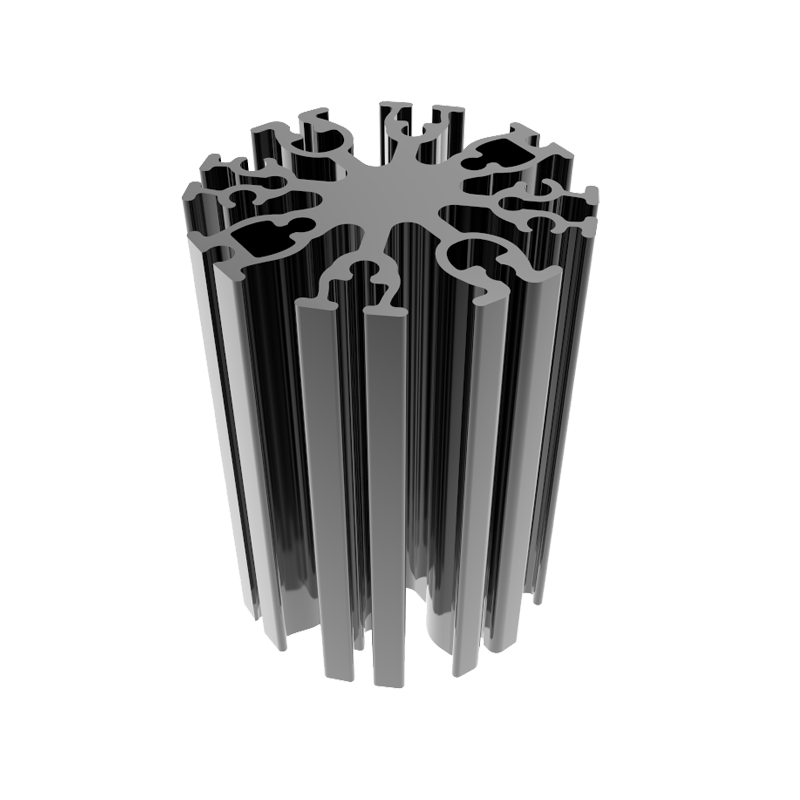

FanLED-3820/3850/3880 mini star heatsink led passive heatsink

FanLED-3820/3850/3880 mini star heatsink led passive heatsink

Description
LED Star Heat Sink ø38mmxh20mm/50mm/80mm; Design for Spotlight and Downlight 130~1200lm; Rth4.5°C/w~9.0°C/w; Suitable for 3w/4w/5w/6w/8w/9w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; standard finish-Black anodized
Availability
FanLED-3820 100pcs; FanLED-3850 300pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name FanLED passive heat sinks
Seriest Number FanLED-38
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized or Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ38
Height(mm) 20.0  50.0  80.0
Item Number FanLED-3820 FanLED-3850 FanLED-3880
Max. Lumen 630 lm 980 lm 1200 lm
Dissipated Power  (Ths-amb,50°C) 4.5 W 7.0 W 9.0 W
Thermal Resistance Rth(°C/W) 11.4°C/W 7.0°C/W 5.4°C/W
Cooling Surface Area (mm²) 11379 mm² 28449 mm² 45518 mm²
Net Weight (g) 24.0 g 60.9 g 97.4 g
Quantity(pcs/CTN) 288 pcs 144 pcs 108 pcs
Modular Types COB COB COB
For Environments Indoor area
For Lightings Down lights,Architectural lights
For Application Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    The product is suitable for Zhaga book 3 and Zhaga book 11 holes.
  • 02

    Suitable for COB modules with luminescent surface of 6.3-11.0mm.
  • 03

    Beautiful appearance design, and the line can go inside.
Mingfa Tech-Heat Sink | Fanled-382038503880 Mini Star heatsink led-3
  • 04

    The customer can use self-tapping screws to install without tapping.
  • 05
    The product can be added with the market universal square fan (L25xW25).
  • 06

    10%-15% thermal wattage higher than normal star heatsink.

PRODUCT COMPARISON

Mingfa Tech-Heat Sink | Fanled-382038503880 Mini Star heatsink led-4
Mingfa Tech-Heat Sink | Fanled-382038503880 Mini Star heatsink led-5

CERTIFICATE

FanLED-3820/3850/3880 mini star  heatsink  led passive heatsink CERTIFICATE
