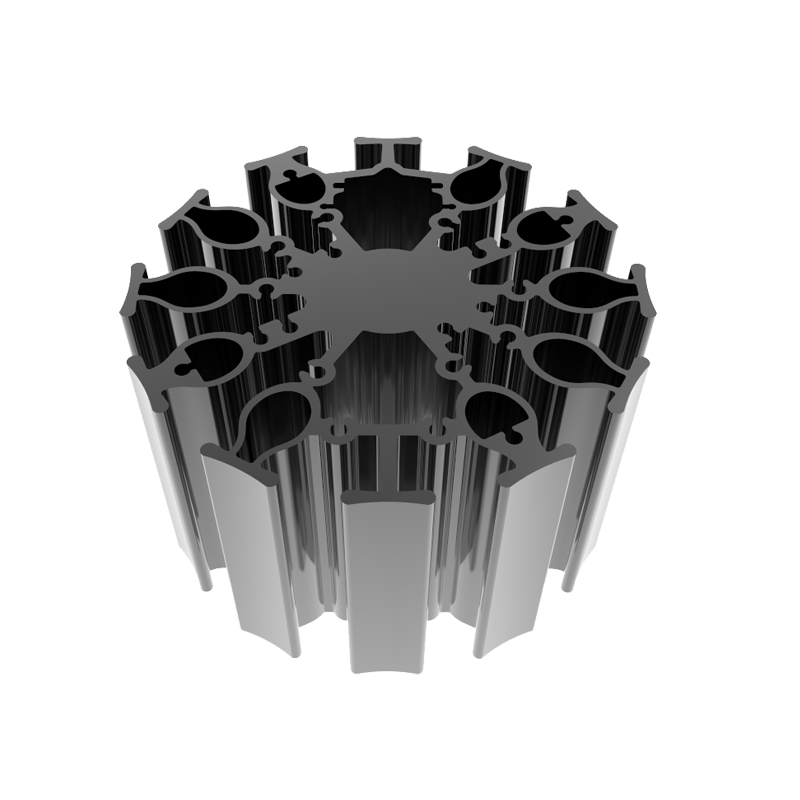

FanLED-8520/8550/8580 led passive heatsink cob heat sink

FanLED-8520/8550/8580 led passive heatsink cob heat sink

Description
LED Star Heat Sink ø85mmxh20mm/50mm/80mm; Design for Spotlight and Downlight 1700~4400lm; Rth1.6°C/w~3.0°C/w; Suitable for 10w/12w/15w/20w/25w/30w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Black a
Availability
FanLED-8520 200pcs; FanLED-8550 200pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name FanLED passive heat sinks
Seriest Number FanLED-85
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized or Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ85
Height(mm) 20.0  50.0  80.0
Item Number FanLED-8520 FanLED-8550 FanLED-8580
Max. Lumen 2300 lm 3600 lm 4400 lm
Dissipated Power  (Ths-amb,50°C) 17.0 W 26.0 W 32.0 W
Thermal Resistance Rth(°C/W) 3.0°C/W 1.9°C/W 1.6°C/W
Cooling Surface Area (mm²) 33881 mm² 79151 mm² 124420 mm²
Net Weight (g) 100.0 g 249.9 g 399.8 g
Quantity(pcs/CTN) 72 pcs 36 pcs 27 pcs
Modular Types COB COB COB
For Environments Indoor area
For Lightings Down lights,Architectural lights
For Application Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    The product is suitable for Zhaga book 3 and Zhaga book 11 holes.
  • 02

    Suitable for COB modules with luminescent surface of 6.3-30.0mm.
  • 03

    Beautiful appearance design, and the line can go inside.
Mingfa Tech-Fanled-852085508580 Led Passive Heatsink Cob heat sink-3
  • 04

    The customer can use self-tapping screws to install without tapping.
  • 05
    The product can be added with the general market shape square fan (L60xW60).
  • 06

    10%-15% thermal wattage higher than normal star heatsink.

PRODUCT COMPARISON

Mingfa Tech-Fanled-852085508580 Led Passive Heatsink Cob heat sink-4
Mingfa Tech-Fanled-852085508580 Led Passive Heatsink Cob heat sink-5

CERTIFICATE

FanLED-8520/8550/8580  led passive heatsink cob heat sink CERTIFICATE
