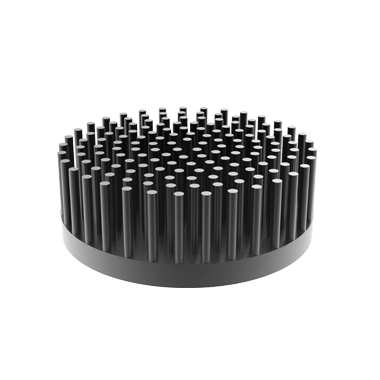

GooLED-8630/8650/8665 passive finned aluminum heat sink

GooLED-8630/8650/8665 passive finned aluminum heat sink

Description
LED PinFin Heat Sink ø86mmxh30mm/50mm/65mm; Design for Spotlight and Downlight 2400~4400lm; Rth 1.5~2.5°C/w; Suitable for 15w/18w/20w/25w/30w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; standard finish - Black ano
Availability
GooLED-8650 225pcs; GooLED-8665 378pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name GooLED passive heat sinks
Seriest Number GooLED-86
Manufacturing Technology Cold forging
Material AL1070
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ86
Height(mm) 30.0  50.0 80.0
Item Number GooLED-8630 GooLED-8650 GooLED-8665
Max. Lumen 2800 Im 3700 Im 4400 Im
Dissipated Power  (Ths-amb,50°C) 20.0 W 27.0 W 32.0 W
Thermal Resistance Rth(°C/W) 2.5°C/W 1.8°C/W 1.5°C/W
Cooling Surface Area (mm²) 27134 mm² 77577 mm² 95583 mm²
Net Weight (g) 79.0 g 210.0 g 293.0 g
Quantity(pcs/CTN) 60 pcs 24 pcs 10pcs
Modular Types COB & SMD COB & SMD COB & SMD
For Environments Indoor area,Outdoor area
For Lightings Spot lights,Down lights,Track lights,Architectural lights
For Application

Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,

Station & Airport,Healthcare

For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    Use AL1070 material by 30% lighter weight with high efficient heat dissipation.
  • 02
    With 15% higher efficiency in heat dissipation than normal star heatsinks.
  • 03

    Compatible with more than 20+ CoB brands, Covering almost 100% of modules.
Mingfa Tech-Best GooLED-863086508665 passive finned aluminum heat sink-3
  • 04

    With dissipation surface 15-20% more than traditional heatsink.
  • 05

    High-end cooling products designed for Spot light, Down light and Track light.
  • 06

    Solid bottom plate can meet IP65-IP67.

PRODUCT COMPARISON

Mingfa Tech-Best GooLED-863086508665 passive finned aluminum heat sink-4
Mingfa Tech-Best GooLED-863086508665 passive finned aluminum heat sink-5

CERTIFICATE

GooLED-8630/8650/8665 passive finned aluminum heat sink CERTIFICATE
