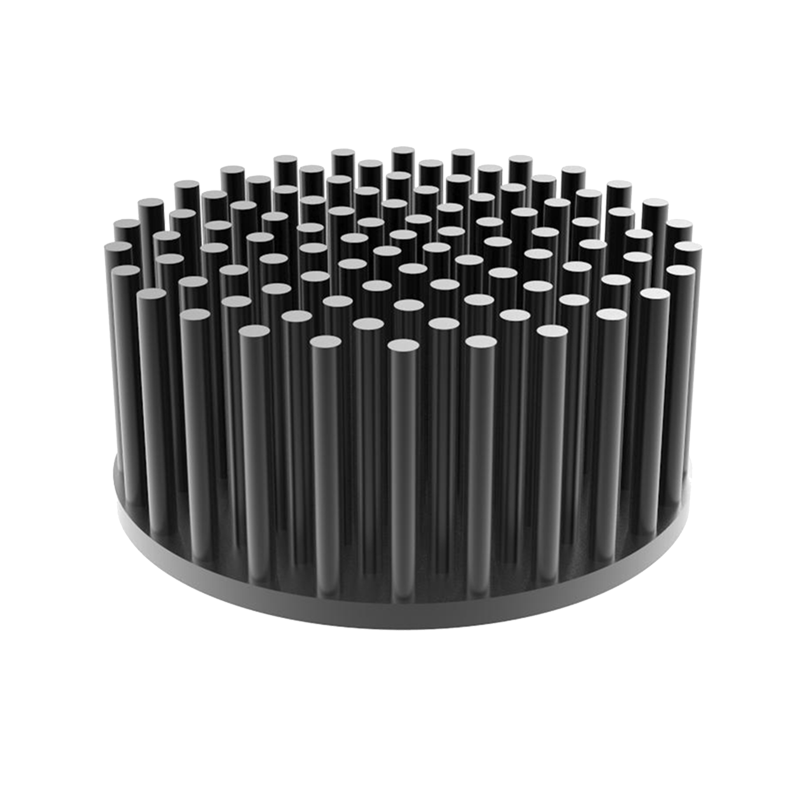

GooLED-19037 cold forging led smd heatsink

Description: LED PinFin Heat Sink ø190mmxh37mm; Design for Spotlight and Downlight 3600~8400lm; Rth 0.8°C/w; Suitable for 30w/35w/40w/50w/55w/60w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish - Black anodized.

Delivery Time: 1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

PRODUCT VIDEO

Brand	Mingfa Tech
Series Name	GooLED passive heat sinks
Seriest Number	GooLED-190
Manufacturing Technology	Cold forging
Material	AL1070
Color & Finishing	Black Anodized & Clear Anodized
Certification	CE, ROHS, WEEE
Diameter(mm)	Φ190
Height(mm)	37.0
Item Number	GooLED-19037
Max. Lumen	8400 Im
Dissipated Power (Ths-amb,50°C)	60.0 W
Thermal Resistance Rth（°C/W)	0.8°C/W
Cooling Surface Area (mm²)	175973 mm²
Net Weight (g)	600.0 g
Quantity(pcs/CTN)	10 pcs
Modular Types	COB & SMD
For Environments	Indoor area，Outdoor area
For Lightings	Down lights,Flood lights,Architectural lights
For Application	Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands	Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

01

Use AL1070 material by 30% lighter weight with high efficient heat dissipation.
02

With 15% higher efficiency in heat dissipation than normal star heatsinks.
03

Compatible with more than 20+ CoB brands, Covering almost 100% of modules.

04

With dissipation surface 15-20% more than traditional heatsink.
05

High-end cooling products designed for Spot light, Down light and Track light.
06

Solid bottom plate can meet IP65-IP67.

GooLED-19037 cold forging led smd heatsink CERTIFICATE
