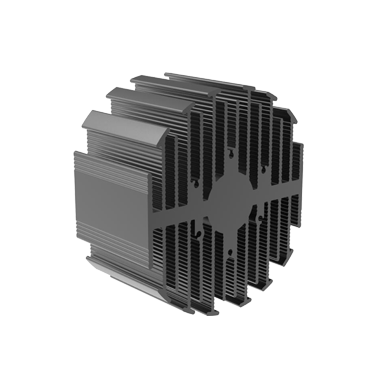

eLED-9520/9550/9580 led heatsink passive star coolers

eLED-9520/9550/9580 led heatsink passive star coolers

Description
LED Star Heat Sink ø95mmxh20mm/50mm/80mm; Design for Spotlight and Downlight 2700~3900lm; Rth1.1°C/w~2.08°C/w; Suitable for 10w/15w/20w/25w/30w/35w/40w/45w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finis
Availability
eLED-9550 102pcs; eLED-9580 1pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name eLED passive heat sinks
Seriest Number eLED-95
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ95
Height(mm) 20.0  50.0  80.0
Item Number eLED-9520 eLED-9550 eLED-9580
Max. Lumen 3200 lm 5600 lm 6800 lm
Dissipated Power  (Ths-amb,50°C) 24.0 W 40.5 W 49.2 W
Thermal Resistance Rth(°C/W) 2.08°C/W 1.25°C/W 1.1°C/W
Cooling Surface Area (mm²) 46462 mm² 108320 mm² 170178 mm²
Net Weight (g) 141.5 g 353.0 g 5640 g
Quantity(pcs/CTN) 72 pcs 36 pcs 24 pcs
Modular Types COB COB COB
For Environments Indoor area
For Lightings Spot lights,Down lights,Track lights,Architectural lights
For Application Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    The product applies to the Xicato XTM module, which can increase the drilling hole position of Zhaga book 3 and Zhaga book 11.
  • 02

    Suitable for COB modules with luminous surface of 9.0-35.0mm.
  • 03

    The fins are designed with wavy lines, suitable for downlights and spotlights.
