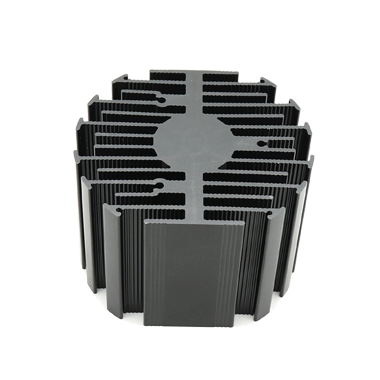

eLED-7020/7030/7040/7050/7080 passive star heatsink cob led coolers

eLED-7020/7030/7040/7050/7080 passive star heatsink cob led coolers

Description
LED Star Heat Sink ø70mmxh20mm/30mm/40mm/50mm/80mm; Design for Spotlight and Downlight 1800~3900lm; Rth1.7°C/w~3.0°C/w; Suitable for 10w/15w/20w/25w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Black
Availability
eLED-7020 1pcs; eLED-7050 100pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name eLED passive heat sinks
Seriest Number eLED-70
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ70
Height(mm) 20.0  30.0  40.0 50.0  80.0
Item Number eLED-7020 eLED-7030 eLED-7040 eLED-7050 eLED-7080
Max. Lumen 2300 lm 2500 Im 2600 Im 3200 lm 3900 lm
Dissipated Power  (Ths-amb,50°C) 16.5 W 18.0 W 19.0 W 22.9 W 28.2 W
Thermal Resistance Rth(°C/W) 3.0°C/W 2.7°C/W 2.6°C/W 2.1°C/W 1.7°C/W
Cooling Surface Area (mm²) 31175 mm² 45240 mm² 59304 mm² 73369 mm² 115563 mm²
Net Weight (g) 83.0 g 124.0 g 165.0 g 206.0 g 329.0 g
Quantity(pcs/CTN) 128 pcs 108 pcs 88 pcs 64pcs 48 pcs
Modular Types COB COB   COB COB
For Environments Indoor area
For Lightings Spot lights,Down lights,Track lights,Architectural lights
For Application Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    The product applies to the Xicato XTM module, which can increase the drilling hole position of Zhaga book 3 and Zhaga book 11.
  • 02

    Suitable for COB modules with luminous surface of 9.0-23.0mm.
  • 03

    The fins are designed with wavy lines, suitable for downlights and spotlights.
Mingfa Tech-Manufacturer Of eLED passive star heatsink cob led coolers-3
  • 04

    There is a flat fin on both sides of the product side to increase the mounting bracket at the hole position.
  • 05

    Designed special cooling products for Spot light, Down light and Track light.
  • 06

    10%-15% thermal wattage higher than normal star heatsink.
