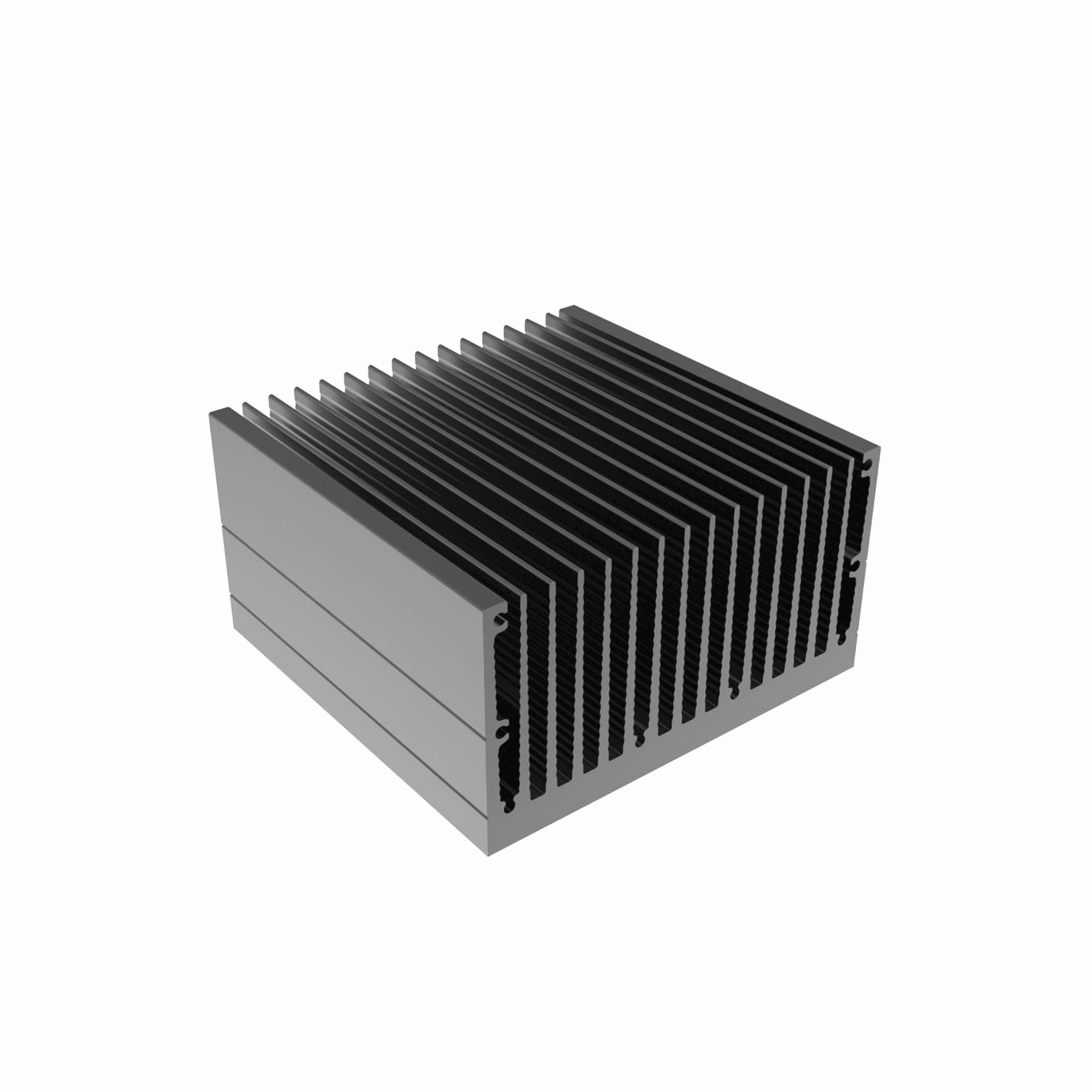

tLED-92×90×30/92×90×50 square heat sink extruded aluminium heatsink

tLED-92×90×30/92×90×50 square heat sink extruded aluminium heatsink

Description
LED Square Heat Sink L90xW92xH30mm/L90xW92xH50mm; Design for Hibay,floodlight and street light,4200-6500lm; Rth1.0°C/w~1.5°C/w; Suitable for 30w/32w/35w/40w/42w/45w; Without hole or custom mounting holes for Zhaga book 3 LED modules; standard finish-Black
Availability
tLED-92×90×50 1pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name tLED passive heat sinks
Seriest Number tLED-92
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Length*Width(mm) L90xW92
Height(mm) 30.0  50.0
Item Number tLED-92×90×30 tLED-92×90×50
Max. Lumen 4700 Im 6500 Im
Dissipated Power  (Ths-amb,50°C) 34.0 W 47.0 W
Thermal Resistance Rth(°C/W) 1.5°C/W 1.0°C/W
Cooling Surface Area (mm²) 89975 mm² 147621 mm²
Net Weight (g) 336.0 g 486.0 g
Quantity(pcs/CTN) 45 pcs 36 pcs
Modular Types SMD SMD
For Environments Indoor area,Outdoor area
For Lightings Flood lights,Street lights,Horticultures,Architectural lights,Area Lights
For Application Industrial & Warehouse,Station & Airport,Horticulture,Outdoor
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga
