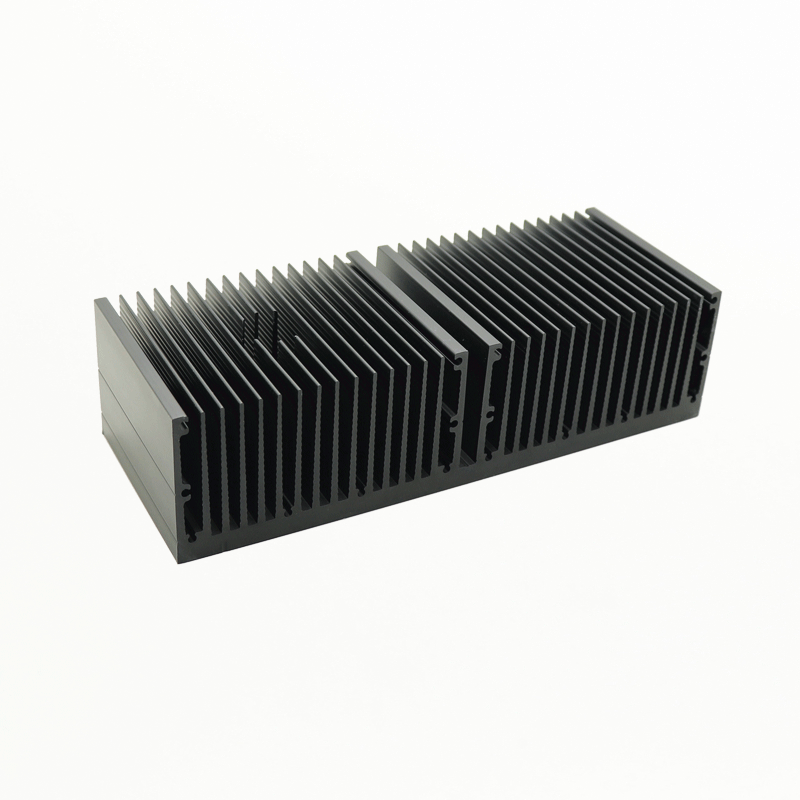

tLED-190×70×30/190×70×50 large led aluminum extrusion heat sink

tLED-190×70×30/190×70×50 large led aluminum extrusion heat sink

Description
LED Square Heat Sink L190xW70xH30mm/L190xW70xH50mm; Design for Hibay,floodlight and street light,6900-9900lm; Rth0.7°C/w~0.9°C/w; Suitable for 45w/50w/52w/55w/60w/65w/70w; Without hole or custom mounting holes for Zhaga book 3 LED modules; Standard finish
Availability
tLED-190×70×50 1pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name tLED passive heat sinks
Seriest Number tLED-190
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Length*Width(mm) L190xW70
Height(mm) 30.0  50.0
Item Number tLED-190×70×30 tLED-190×70×50
Max. Lumen 7400 Im 9900 Im
Dissipated Power  (Ths-amb,50°C) 47.0 W 53.0 W
Thermal Resistance Rth(°C/W) 0.95°C/W 0.7°C/W
Cooling Surface Area (mm²) 142323 mm² 234320 mm²
Net Weight (g) 533.0 g 770.0 g
Quantity(pcs/CTN) 24 pcs 18 pcs
Modular Types SMD SMD
For Environments Indoor area,Outdoor area
For Lightings Flood lights,Street lights,Horticultures,Architectural lights,Area Lights
For Application Industrial & Warehouse,Station & Airport,Horticulture,Outdoor
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    The product is suitable for indoor and outdoor lighting design.
  • 02

    Compatible with more than 20 SMD & COB brands.
  • 03

    The fins are designed with wavy lines, which are suitable for flood light, street light and so on.
Mingfa Tech-Led Over Sink Light 100w Led Passive Heatsink From Mingfa Tech
  • 04

    There is a flat fin on both sides of the product side to increase the mounting bracket at the hole position.
  • 05

    AL6063-T5 thermal conductivity is 1.5 times higher than ADC12.
  • 06

    Solid plate design to meet the IP65-IP67.

PRODUCT COMPARISON

Mingfa Tech-Led Over Sink Light 100w Led Passive Heatsink From Mingfa Tech-1
Mingfa Tech-Led Over Sink Light 100w Led Passive Heatsink From Mingfa Tech-2

CERTIFICATE

tLED-190×70×30/190×70×50 large led aluminum extrusion heat sink CERTIFICATE
