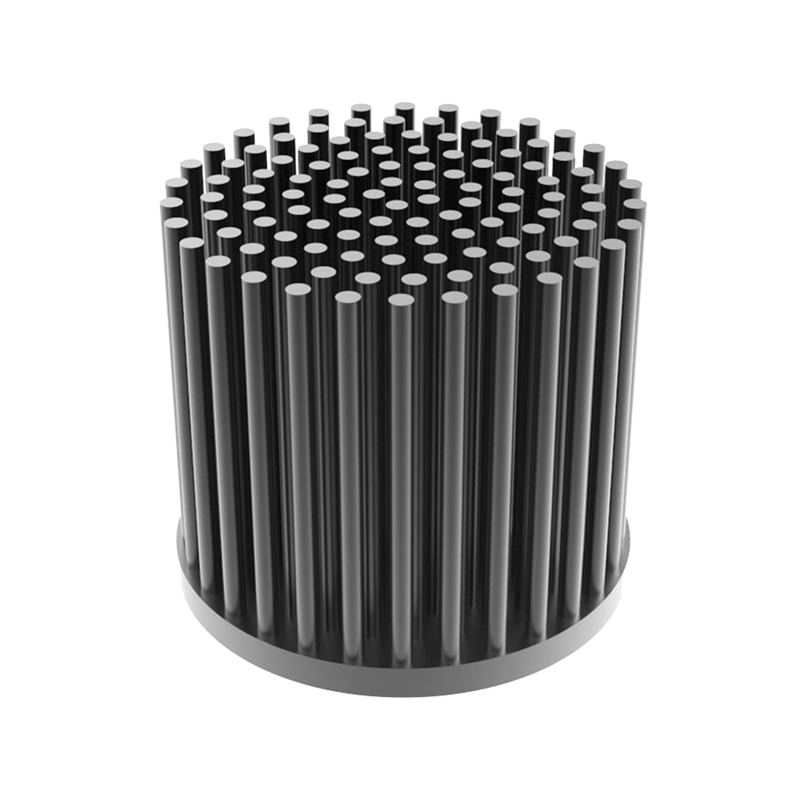

GooLED-6830/6850/6860/6880 passive pin fin coolers SMD heat sink

Description: LED PinFin Heat Sink ø68mmxh30mm/50mm/60mm/80mm; Design for Spotlight and Downlight 1200~2600lm; Rth 4.0~6.2°C/w; Suitable for 8w/10w/11w/12w/15w/18w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Blac

Delivery Time: 1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

PRODUCT VIDEO

Brand	Mingfa Tech
Series Name	GooLED passive heat sinks
Seriest Number	GooLED-68
Manufacturing Technology	Cold forging
Material	AL1070
Color & Finishing	Black Anodized & Clear Anodized
Certification	CE, ROHS, WEEE
Diameter(mm)	Φ68
Height(mm)	30.0	50.0	60.0	80.0
Item Number	GooLED-6830	GooLED-6850	GooLED-6860	GooLED-6880
Max. Lumen	1700 Im	2100 Im	2300 Im	2600 Im
Dissipated Power (Ths-amb,50°C)	12.5 W	15.5 W	17.0 W	19.0 W
Thermal Resistance Rth（°C/W)	4.0°C/W	3.2°C/W	2.9°C/W	2.6°C/W
Cooling Surface Area (mm²)	36775 mm²	59562 mm²	70017 mm²	89724 mm²
Net Weight (g)	108.0 g	153.0 g	176.0 g	245.0 g
Quantity(pcs/CTN)	90 pcs	54 pcs	45 pcs	36 pcs
Modular Types	COB & SMD	COB & SMD	COB & SMD	COB & SMD
For Environments	Indoor area，Outdoor area
For Lightings	Spot lights,Down lights,Track lights,Architectural lights
For Application	Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands	Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

01

Use AL1070 material by 30% lighter weight with high efficient heat dissipation.
02

With 15% higher efficiency in heat dissipation than normal star heatsinks.
03

Compatible with more than 20+ CoB brands, Covering almost 100% of modules.

04

With dissipation surface 15-20% more than traditional heatsink.
05

High-end cooling products designed for Spot light, Down light and Track light.
06

Solid bottom plate can meet IP65-IP67.
