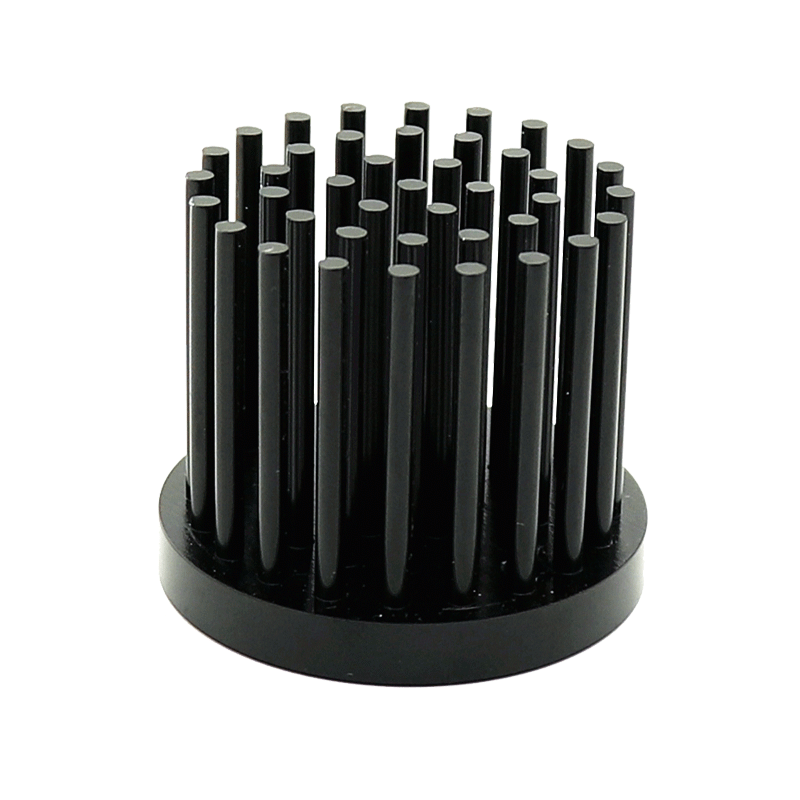

GooLED-3530 round cold forged LED star heat sink

GooLED-3530 round cold forged LED star heat sink

Description
LED PinFin Heat Sink ø35mm x H30mm; Design for Spotlight and Downlight 200~600lm; Rth 11.1°C/w; Suitable for 3w/4w/5w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Black anodized.
Availability
GooLED-3530 5pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name GooLED passive heat sinks
Seriest Number GooLED-35
Manufacturing Technology Cold forging
Material AL1070
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ35
Height(mm) 30.0
Item Number GooLED-3530
Max. Lumen 600 Im
Dissipated Power  (Ths-amb,50°C) 4.5 W
Thermal Resistance Rth(°C/W) 11.1°C/W
Cooling Surface Area (mm²) 8915 mm²
Net Weight (g) 22.0 g
Quantity(pcs/CTN) 250 pcs
Modular Types COB & SMD
For Environments Indoor area,Outdoor area
For Lightings Spot lights,Down lights,Track lights,Architectural lights
For Application Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga


PRODUCT ADVANTAGE

  • 01

    Use AL1070 material by 30% lighter weight with high efficient heat dissipation.
  • 02
    With 15% higher efficiency in heat dissipation than normal star heatsinks.
  • 03

    Compatible with more than 20+CoB brands, Covering almost 100% of modules.
Mingfa Tech-Circular Heat Sink | Gooled Round Cold Forged Led Star Heat Sink
  • 04

    With dissipation surface 15-20% more than traditional heatsink.
  • 05

    High-end cooling products designed for Spot light, Down light and Track light.
  • 06

    Solid bottom plate can meet IP65-IP67.
