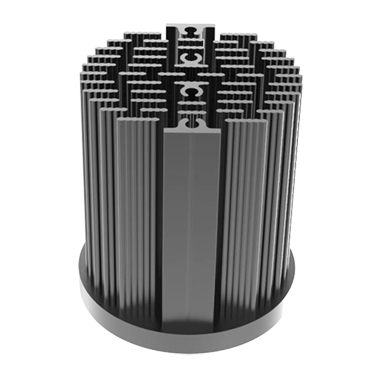

xLED-4530/4550/4568 passive cold forging pin fin coolers

xLED-4530/4550/4568 passive cold forging pin fin coolers

Description
LED PinFin Heatsink ø45mmxh30mm/50mm/68mm; Design for Spotlight and Downlight 400~1400lm; Rth 4.7~7.1°C/w; Suitable for 5w/8w/10w/12w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard finish-Black anodized.
Availability
*
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name xLED passive heat sinks
Seriest Number xLED-45
Manufacturing Technology Cold forging
Material AL1070
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ45
Height(mm) 30.0  50.0 68.0
Item Number xLED-4530 xLED-4550 xLED-4568
Max. Lumen 900 Im 1200 Im 1400 Im
Dissipated Power  (Ths-amb,50°C) 7.0 W 9.0 W 10.5 W
Thermal Resistance Rth(°C/W) 7.1°C/W 5.0°C/W 4.7°C/W
Cooling Surface Area (mm²) 22830 mm² 37985 mm² 49775 mm²
Net Weight (g) 45.0 g 63.5 g 90.0 g
Quantity(pcs/CTN) 250 pcs 150 pcs 100 pcs
Modular Types SMD SMD SMD
For Environments Indoor area,Outdoor area
For Lightings Spot lights,Down lights,Track lights,Architectural lights
For Application

Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare

For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga
