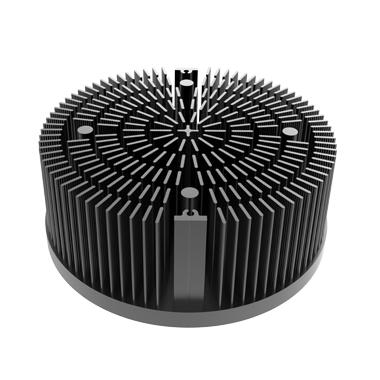

xLED-16530/16560/165100 LED heat sink AL1070 pin fin coolers

xLED-16530/16560/165100 LED heat sink AL1070 pin fin coolers

Description
LED PinFin Heat Sink ø165mmxh30mm/60mm/100m; Design for Spotlight and Downlight 7200~16800lm; Rth 0.4~0.9°C/w; Suitable for 50w/60w/65w/70w/80w/90w/100w/120w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard fin
Availability
*
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name xLED passive heat sinks
Seriest Number xLED-165
Manufacturing Technology Cold forging
Material AL1070
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ165
Height(mm) 30.0  60.0 100.0
Item Number xLED-16530 xLED-16560 xLED-165100
Max. Lumen 7700 Im 12600 Im 16800 Im
Dissipated Power  (Ths-amb,50°C) 55.0 W 90.0 W  120.0 W
Thermal Resistance Rth(°C/W) 0.9°C/W 0.5°C/W 0.4°C/W
Cooling Surface Area (mm²) 173714 mm² 362363 mm² 613892 mm²
Net Weight (g) 830.0 g 1200.0 g 1700.0 g
Quantity(pcs/CTN) 12 pcs 9 pcs 7 pcs
Modular Types SMD SMD SMD
For Environments Indoor area,Outdoor area
For Lightings Down lights,Flood lights,Street lights,Architectural lights,Horticulture lights,Area Lights
For Application

Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare

For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga
