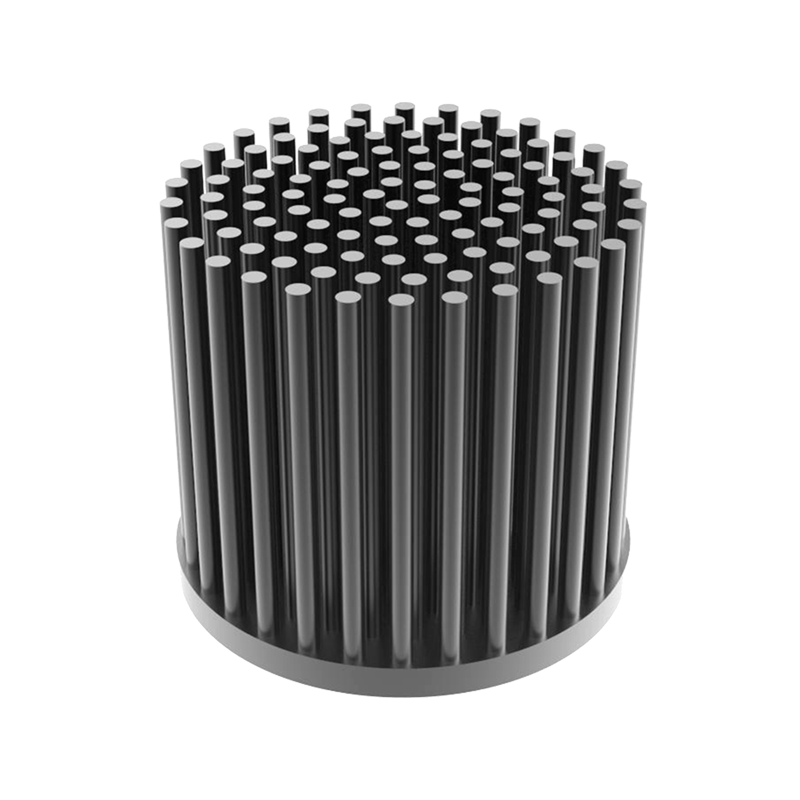

PinLED-152 Series Pin Fin Sinks Φ152mm for COB Modular Product Brief

Description: Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages. Thermal resistance range Rth (1.26°C/W; 0.65°C/W; 0.6°C/W). Modular design with mounting holes foreseen for direct

Delivery Time: 1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

SPECIFICATIONS

Brand	Mingfa Tech
Series Name	PinLED PinFin heat sinks
Seriest Number	PinLED-152
Manufacturing Technology	Cold Forged
Material	AL 1070
Color & Finishing	Black Anodized
Certification	CE, ROHS, WEEE
Diameter(mm)	Φ152
Height(mm)	40.0mm	70.0mm	100.0mm
Item Number	PinLED-15240	PinLED-15270	PinLED-152100
Max. Lumen	4800 Im	6200 Im	6200 Im
Dissipated Power (Ths-amb,50°C)	45.0 W	72.0 W	85.0 W
Thermal Resistance Rth（°C/W)	1.1° C/W	0.68 °C/W	0.58 °C/W
Cooling Surface Area (mm²)	127437.0 mm²	213868 .0 mm²	300300.0 mm²
Net Weight (g)	788.9 g	1085.8 g	13883.1 g
Quantity (pcs/CTN)	24 pcs	12 pcs	8 pcs
Modular Types	COB	COB	COB
For Environments	Indoor area or Outdoor area
For Lightings	Down lights,Architectural lights
For Application	Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education, Station & Airport,Healthcare
For LED brands	Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

01

Use AL1070 material by 30% lighter weight with high efficient heat dissipation.
02

With 15% higher efficiency in heat dissipation than normal star heatsinks.
03

Compatible with more than 20+ CoB brands, Covering almost 100% of modules.

04

With dissipation surface 15-20% more than traditional heatsink.
05

High-end cooling products designed for Spot light, Down light and Track light.
06

Solid bottom plate can meet IP65-IP67.

PinLED-152 Series Pin Fin Sinks Φ152mm for COB Modular Product Brief CERTIFICATE
