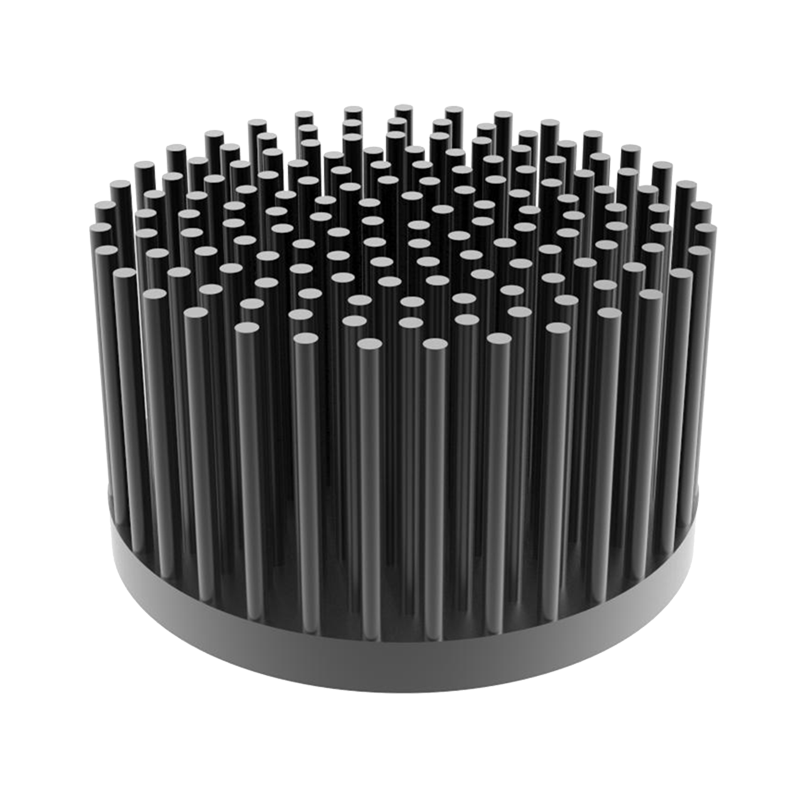

PinLED-110 Series Pin Fin Sinks Φ110mm for COB Modular Product Brief

PinLED-110 Series Pin Fin Sinks Φ110mm for COB Modular Product Brief

Description
*Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages. *Thermal resistance range Rth (1.47°C/W; 1.14°C/W; 1.0°C/W). *Modular design with mounting holes foreseen for direct
Availability
*
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name PinLED star heat sinks
Seriest Number PinLED-110
Manufacturing
Technology
Cold Forged
Material AL 1070
Color & Finishing Black Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ110
Height(mm) 50.0mm 80.0mm 100.0mm
Item Number PinED-11050 PinLED-11080 PinLED-110100
Max. Lumen 4800 Im 6200 Im 6200 Im
Dissipated Power
(Ths-amb,50°C)
34.0 W 44.0 W 50.0 W
Thermal Resistance
Rth°C/W)
1.47° C/W 1.14 °C/W 1.0 °C/W
Cooling Surface
Area (mm²)
84854.4 mm² 131648. mm² 162844 .1mm²
Net Weight (g) 468.0 g 626.5 g 732.3 g
Quantity
(pcs/CTN)
24 pcs 16 pcs 12 pcs
Modular Types COB COB COB
For Environments Indoor area
For Lightings Down lights,Architectural lights
For Application Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education, Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga
