EtraLED Heat Sink

Home > Products > COB LED Heat Sink > EtraLED Heat Sink >

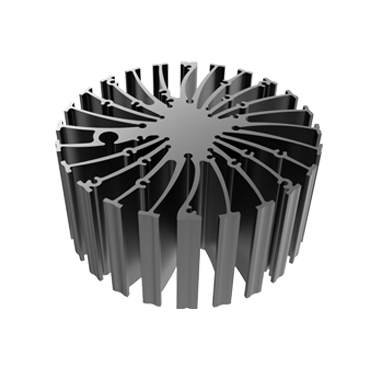

EtraLED-11020/11050/11080 passive heat sink cob heatsink

EtraLED-11020/11050/11080 passive heat sink cob heatsink

Description
LED Star Heat Sink ø110mmxh20mm/50mm/80mm; Design for Spotlight and Downlight 4100~7900lm; Rth0.9°C/w~1.5°C/w; Suitable for 20w/25w/30w/35w/40w/45w/50w/55w; Self-taping hole or custom mounting holes for Zhaga book 3 and book 11 LED modules; Standard fini
Availability
EtraLED-11050 300pcs; EtraLED-11080 300pcs;
Location Stock
Dongguan China, USA, Europe
Multiple order quantity
100
Minimum order quantity
1
Certification
CE ROHS WEEE
Price Basis
Determined by quantities
Supply Capability
700,000pcs Per Month
Place of Origin
Dongguan, Shenzhen, Guangzhou, Foshan, China
Payment
T/T PayPal
Packaging Details
Mingfa Tech’s Safety Cartons / Flight case
Shipping Method
By sea, By flight, Express (DHL/TNT/FEDEX/UPS)
Trading Terms
Ex-works, FOB Shenzhen, CIF Port, DDU, DDP
Delivery Time
1-7 working days after receiving full payment for samples if off the shelf Around 13 working days after receiving deposit for over 1000pcs Around 25 working days after receiving deposit for over 5000pcs Confirmed with Mingfa Tech for over 10000pcs

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

Brand Mingfa Tech
Series Name EtraLED passive heat sinks
Seriest Number EtraLED-110
Manufacturing Technology Aluminum extrusion
Material AL6063-T5
Color & Finishing Black Anodized & Clear Anodized
Certification CE, ROHS, WEEE
Diameter(mm) Φ110
Height(mm) 20.0  50.0  80.0
Item Number EtraLED-11020 EtraLED-11050 EtraLED-11080
Max. Lumen 4600 lm 6700 lm 7900 lm
Dissipated Power  (Ths-amb,50°C) 33.0 W 48.0 W 57.0 W
Thermal Resistance Rth(°C/W) 1.5°C/W 1.1°C/W 0.9°C/W
Cooling Surface Area (mm²) 53311 mm² 124084 mm² 194856 mm²
Net Weight (g) 165.0 g 414.0 g 662.0 g
Quantity(pcs/CTN) 36 pcs 18 pcs 12 pcs
Modular Types COB COB COB
For Environments Indoor area
For Lightings Down lights,Architectural lights
For Application Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    The product is suitable for Zhaga book 3 and Zhaga book 11 holes.
  • 02

    Suitable for COB modules with luminous surface of 9.0-40.0mm.
  • 03

    Suitable for hole positions of Xicato XTM, Philips SLM and DLM modules.
Mingfa Tech-Heat Sink Material Etraled-110201105011080 Passive Heat Sink-3
  • 04

    The customer can use self-tapping screws to install without tapping.
  • 05
    It is suitable to increase the market circular fan with an outer diameter of 95mm.
  • 06

    Compatible with more than 20 COB brands . Covering 85%-95% of modules.

PRODUCT COMPARISON

Mingfa Tech-Heat Sink Material Etraled-110201105011080 Passive Heat Sink-4
Mingfa Tech-Heat Sink Material Etraled-110201105011080 Passive Heat Sink-5

CERTIFICATE

EtraLED-11020/11050/11080 passive heat sink cob heatsink CERTIFICATE
